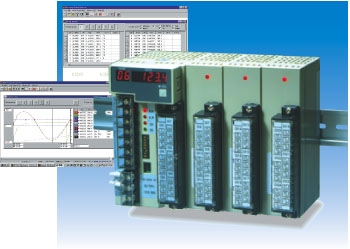

SE3000 series scanning units are designed for data logging with a personal computer. The basic unit with 6 input points can be connected to 7 sub units (6 input points / sub unit) and maximum 48 analog data can be collected. Two soft ware packages, "KIDS" for data logging and "PASS" for parameter programming, are available.
|
Expanded type units can expand input points up to 48 points by connecting sub units (6-point input). |
|
Data can be easily collected by the data logging software package "KIDS" and the parameter programming software package "PASS". The "KIDS" can connect up to 5 sets of SE3000 and manage up to 100 channels. |
| 3 kinds of communications interfaces of RS-232C, RS-422A and are built-in. |
|
The communications protocol is MODBUS for easy system configuration. |
|
Universal input (32 kinds of DC voltage, thermocouples and resistance thermometers) |
| Input is isolated between all channels. |
|
The unit can be used with BR series graphic recorder as an input extension unit (up to 24 points). |
| CE conformance |
Base Unit
| Model | Specification |
| SE3100-000 | Without display |
| SE3101-000 | With display |
| Sub Unit |
| Model |
| SE3211-000 |
| Measuring point |
Base unit 6 points, sub unit 6-point/unit * Up to 7 sub units can be connected to 1 base unit (up to 48 points). |
| Input kind | Universal input: 10 DC voltage, 17 thermocouples, 5 resistance thermometers |
| Accuracy rating | ±0.1%± 1digit (for DC voltage and thermocouples) |
| Measuring cycle | 1 second (for 6 points) to 8 seconds (for 48 points) |
| Burnout | Sensor disconnection judgment function of thermocouples and resistance thermometer inputs is built-in. (Enable/disable selectable) |
| Communications interface |
RS-232C, RS-422A, RS-485 (switch selection) * MODBUS protocol |
| Alarm | Up to 4 alarms for each channel |
| Alarm type | High, low, differential high, differential low, rate-of-change increase, rate-of change decrease (no alarm output) |
| Dimension |
Base unit H138 x W72 x D100mm Sub unit H138 x W36 x D100mm |
| Mounting | DIN (35mm) rail mounting |
| Rated power voltage | 100V to 240VAC 50/60Hz |
| Display unit | 7-segment red LED 7 digits |
| Display content | Channel number 2 digits, data 5 digits (channel forwarding/fixed) |
| Display renewal cycle | 3 seconds |
